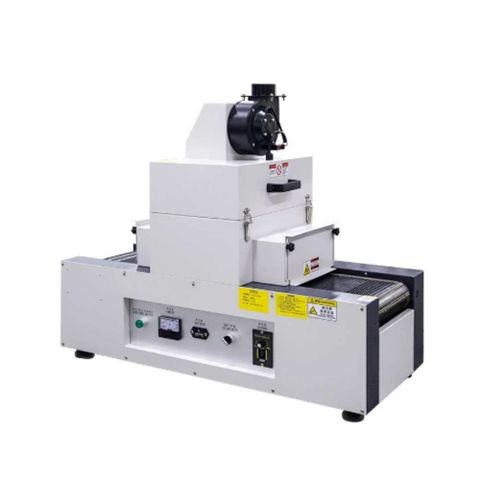

Bench-top UV Curing Conveyor
Last Update
Price:
R.F.Q.
Share Product:
Detail
Light Source 1: Gas Discharge Lamp
Lamp Power: 2 kW
Light Intensity at 100mm irradiation height:
- UVA - 161 mW/cm2, UVB - 172 mW/cm2, UVC - 38 mW/cm2, UVV - 119 mW/cm2
- Power: Single power
Operating Life: Around 1,000 hours in general use
Lamp Coverage: Covers conveyor width 400mm
Adjustable lamp height

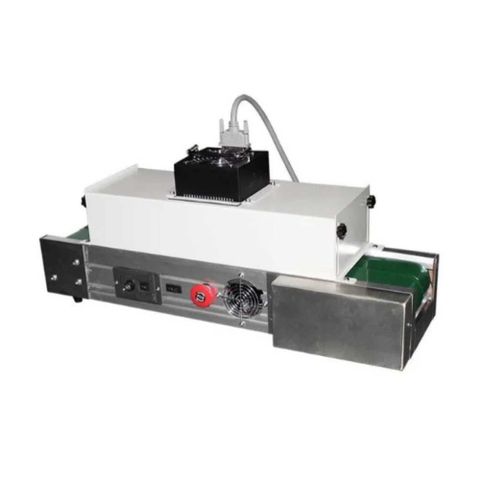

Light Source 2: LED Head
LED Wavelength: 365nm, 385nm, 395nm, 405nm and other wavelengths upon request
Light Intensity: Up to 10,000 mW/cm²
Power: Adjustable power settings from 10% to 100%
Operating Life: > 20,000 hours under normal operating conditions
LED Irradiation Area: A wide range of options available to suit your application needs
Adjustable LED height
Conveyor Specifications
Conveyor Type: Metal or UV-resistant teflon mesh belt
Conveyor belt width: 100mm to 1000mm, other width available upon request
Conveyor belt length: 1, 1.2, 1.5 or 2 metres, other length available upon request
Conveyor belt speed: Adjustable from 0 up to 130mm/s (~ 8m/min)
Controls: Main power supply switch, lamp switch, lamp operating hours counter and belt speed adjustment dial
Safety Features: Complete UV-blocking enclosure, traffic light beacon with alarm, emergency stop switch
