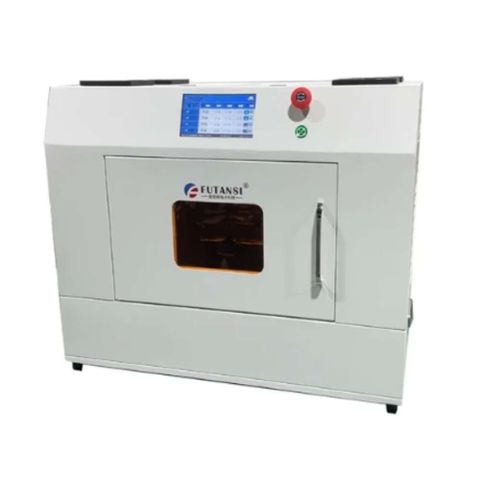

UV Curing Chamber
https://www.adherasg.com/chamber-uv-curing
Last Update
Price:
R.F.Q.

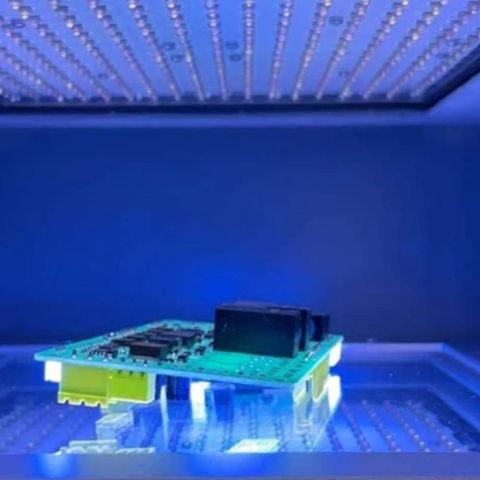

The UV Curing Chamber is a simple, cost-effective solution for reliable batch processing across a wide range of industrial and scientific needs. Designed with operator safety as a priority, the chamber provides complete UV protection during use. Its versatility makes it an ideal tool for production lines, R&D laboratories, and specialised applications like resin curing, 3D printing, dental applications, and medical assembly. Beyond curing, the customisable design can be configured for other functions, such as a disinfection unit, particle inspection chamber, or a UV accelerated aging chamber, making it a truly adaptable machine for your specific requirements.
Share Product:
Detail
Technical Specifications
LED Wavelength: 365nm, 385nm, 395nm, 405nm and other wavelengths upon request
Light Intensity: Up to 10,000 mW/cm²
Power: Adjustable power settings from 10% to 100%
Timer: Countdown timer settings from 0.1s to 999.9s
LED Irradiation Area: A wide range of options available to suit your application needs
Operating Life: > 20,000 hours under normal operating conditions
Controls: Integrated intuitive touch-screen controls or a separate LED controller unit
Safety Features: Complete UV-blocking enclosure, chamber door safety cut-off, traffic light beacon with alarm (optional), emergency stop switch (optional)
Operation Modes:
- Continuous run at constant power setting
- Timer mode at constant power setting
- Multi-steps profile, up to 20 steps in 1 cycle
Chamber Size: Standard 200x200mm, can be customised
Options:
- Water cooling LEDs for highest intensity output,
- Top and bottom in-line UV curing
- Inert gas environment,
- Humidity controls,
- Temperature-regulated environment,
- Table rotation for 360° curing,

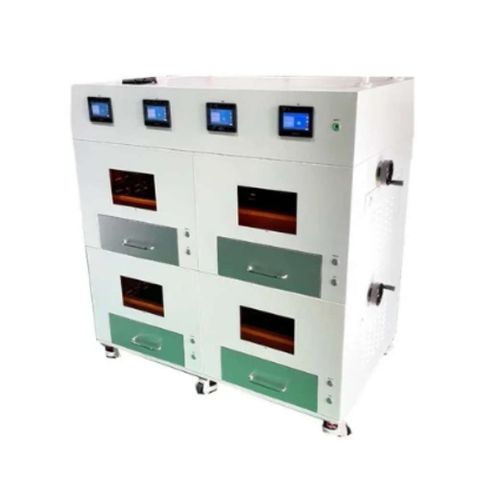

- Stackable chamber
