UV Curing Conveyor

https://www.adherasg.com/conveyor-uv-curing

Last Update

Price:

R.F.Q.

Introducing a versatile range of industrial curing solutions with our UV Curing Conveyor systems. Engineered for both high performance and precision, these conveyors utilise either a powerful UV LED head or a gas discharge lamp to deliver the rapid, continuous curing of adhesives, coatings, and inks. These systems are the ideal solution for demanding applications across industries like electronics manufacturing, medical device assembly, and printing. Featuring intuitive controls and a variety of customisable specifications—including belt type, width, and speed—you can precisely manage the curing process to ensure consistent results and maximum productivity. With a modular and scalable design, our conveyors offer seamless integration into various production lines, adapting to your specific needs.

Share Product:

Detail

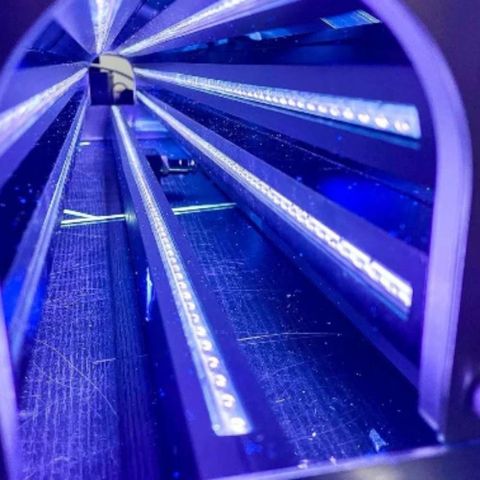

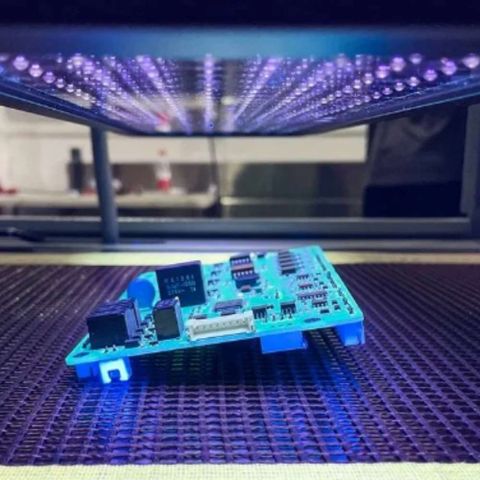

Area or Line UV LED Curing Heads

LED Wavelength: 365nm, 385nm, 395nm, 405nm and other wavelengths upon request

Light Intensity: Up to 10,000 mW/cm²

Power: Adjustable power settings from 10% to 100%

Operating Life: > 20,000 hours under normal operating conditions

LED Irradiation Area: A wide range of options available to suit your application needs

Adjustable LED position above conveyor

Options: Water cooling LEDs for highest intensity output, top and bottom in-line UV curing, 360° in-line UV curing

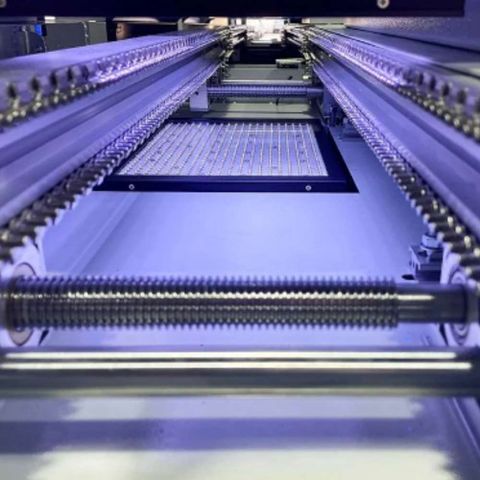

Conveyor Specifications

Conveyor Type: Metal or UV-resistant teflon mesh belt, or chain and sprocket

Conveyor belt width: 200mm to 1000mm, other width available upon request

Conveyor belt length: 1, 1.2, 1.5 or 2 metres, other length available upon request

Conveyor belt speed: Adjustable from 0 up to 130mm/s (~ 8m/min)

Controls: Intuitive touch-screen controls

External Communications: Analog PLC (24V) Input/Output connections, SMEMA, RS232, RS485 communication ports

Safety Features: Complete UV-blocking enclosure, traffic light beacon with alarm, emergency stop switch, motion sensors for material loading and unloading
